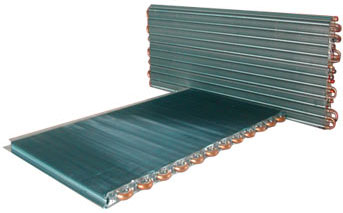

Air Cooled Condenser & Evaporator Coil

Special Features

1. Bright and annealed copper tube
2. Virgin 1100 grade Aluminium used for manufacturing quality fins
3. Coils have good bonding as they are expanded in mechanical bullet system
4. Internal clearing system for the coil as per the standard ASTM B280
5. Every coil is tested at 400 PSI of Dry nitrogen pressure

Technical Specification

FINS
Virgin aluminum 1100 grade dead soft, 0.13 thick

FIN PATTERN
9.52 dia x 25.4mmH x 22.0mm W

FIN SURFACE
9.52 dia sine wave

FIN EDGE
Rippled

FIN SPACING
10-15 fin per Inch

TUBE
Copper with Alloy C12200 and standard of ASTMB280
Refrigeration grade, oxygen free

TUBE WALL
Smooth or internally grooved (IGT)

TUBE THICKNESS
0.3mm

TUBE SHEETS
Galvanized steel 1.2mm thick

TESTING
Pressure test up to 31 bar
Leave test with dry nitrogen of 400 psi
Curing period 6 hours

---
